TS-Mx(E) System model

1. Wide range of 50,000 mg/L measurement as maximum. The wide range measurement can be possible to monitor MLSS concentration in the aeration basin.

2. Easy installation, simple operation. For user-friendly, TS-Mx(E) is designed as a concept of easy installation and simple operation.

3. Built-in wiper cleaning system. The built-in wiper cleaning system certainly keeps lense clean.

4. Sapphire glass for scratch proof. The optical windows are made of hard-to scratch sapphire glass. It enables to scrub the window surface to maintain the Sensor.

TS-MxS-A Analog output model

1. 4-20mA analog output is provided from TS-MxS-A Sensor. It is possible to connect to the system as PLC directly.

2. Wide range of 50,000 mg/L measurement as maximum. The wide range measurement can be possible to monitor MLSS concentration in the aeration basin.

3. Built-in wiper cleaning system. The built-in wiper cleaning system certainly keeps lense clean.

4. Sapphire glass for scratch proof. The optical windows are made of hard-to scratch sapphire glass. It enables to scrub the window surface to maintain the Sensor.

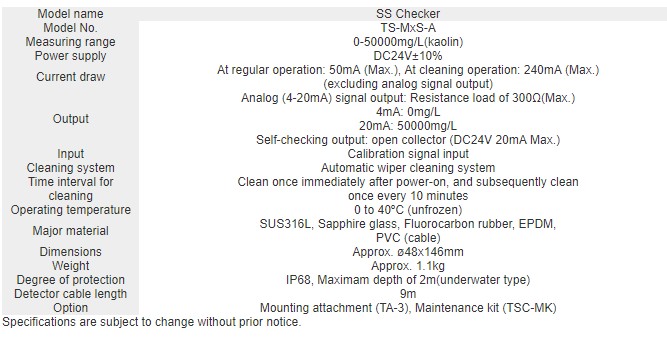

Specification
