Applications:

The Liebherr in-situ-water concentration determination with Litronic-FMS III/RMH12 records the water content (determining the concentration) also for very low ppm ranges in emulsions like: Diesel fuel, Gear oil, Hydraulic oil, Motor oil, Roller bearing oil, Transformer oil, Turbine bearing oil

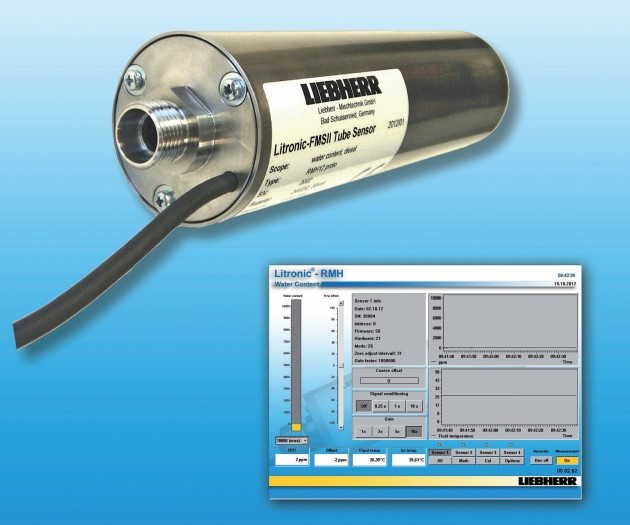

Coaxial tube sensor RMH12

Features:

1. Direct digital measurement

2. 30 measurements per second

3. High-resolution temperature measurement and temperature compensation of emulsion

4. Coaxial condensator made of ceramic

5. High-quality stainless steel housing

6. Resistant against aggressive liquids and oils

7. Easy process connection (Ermeto screw connection)

8. Digital measured value transfer

9. Up to 4 sensor per interchange and evaluation unit

10. Max. Pressure 6 bar

11. Medium temperature max. 60 degree Celcius

Litronic-FMS III Evaluation and Interchange unit

to record, process and prepare the measured values from the sensor:

1. DASYLab Runtime

2. Parameterization and calibration (Litronic-FMS III Software)

3. Adjustable measurement range

4. Field-bus connection

5. Ethernet connectivity (LAN), (WLAN optional)

6. Graphic visualisation

7. Modular design for easy enlargement

8. Mounting on standard mounting-rail TS35 for easy switch cabinet mounting

Litronic-FMS III Software

1. Visualisation

2. Graphic chart recording

3. Parametrisation

4. Calibration

5. Cross-linking of sensor data

6. Math module, junction of measured values

7. Determination of statistic data

8. Data logging
