Complete set of measure and control
Main application areas:
1. Chemical and process technology
2. Water and Waste water treatment
3. Cooling water treatment
4. Drinking water and beverage
1. Accurate measurement of chlorine concentration and calculation of active chlorine
2. Measured parameters:
Free Chlorine: 0.00-5.00 mg/L
Active Chlorine: 0.00-5.00 mg/L
pH: -2.00 to +16.00 pH
Temperature: -30.00 to +140.00°C
3. Complete system plug and play
4. Self-cleaning of the system
Advantages of the measuring system
The principle of measure is based on a potentiostatic probe, without reagent or consumable, on a closed-loop so reducing the costs of functioning and avoiding the loss of online water.
The increase of the value of the pH reducing the efficiency of the treatment of the Chlorine, the transmitter S200 shows a value of free Chlorine compensated in pH5 and of active Chlorine optimized to assure a piloting of the optimal process.

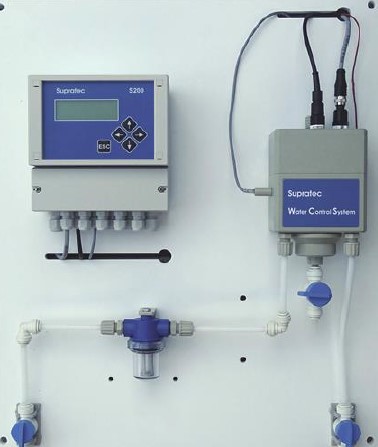

The whole WCS for the free Chlorine included all necessary for the measure of concentration in Chlorine: electrode potentiostatique indestructible for the measure of free Chlorine, electrode pH, measure and compensation in flow, room of opaque measure, closed-loop...
Function of automatic auto-cleaning by electrolysis alowing to dissolve the firm deposits: limestone or fats.
Advantages of the controller
Access to the menus of programming secured via password (3 user's levels)
Controller possessing numerous possibilities of piloting: 2 digital output for the control of the frequency of functioning of dosing pump, 3 relay output potential free NO contacts, 2 analog output 0/4-20mA, 2 separately adjustable PI... controllers.
Temperature compensation manually or by using a Pt100 or Pt 1000
Calibration of the pH with automatic detection of the value of the buffer solution.
Single-point calibration for free chlorine (DPD method).
