1. Based on a 16bit-Single Chip Processor
2. Fully automatic sampling and analysis
3. Can run auto calibration or manual calibration
4. Adjustable measuring cycle & time
5. Measuring via Circuit Method
6. Analysis indicating lamps & abnormal alarm
7. Simultaneously display of Nickel value, pH value, temperature value and analysis cycle
8. Automatic dosing according to analysis result
9. Two phase abnormal alarm & shutdown alarm
10. Manual diagnosis & adjustment
Competitive Advantages:
1. High range, higher accuracy
2. Less cost for less operation error

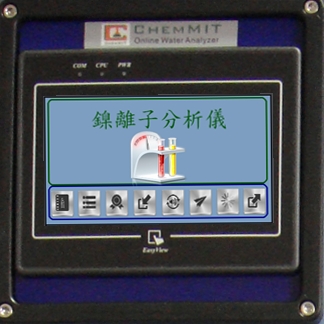

3. LCD color 4.3" touch panel display
4. Reagents free, cost saving
5. Operating language can be selected from languages of English/Traditional Chinese/Simplified Chinese
6. Graphical user interface for easy to use/read
7. With Data automatic storage device
8. Storage capacity up to 60,000 results (covering Nickel value, pH value, temperature value and analysis cycle)
9. Years of experience in instrumentation
Application
In the electroplating industy, nickel sulfate solution is the main raw material for nickel electroplating and chemical nickel plating. The solution is dark green color. The color depth of the solution depends on the concentration. The W7528 Nickel Analyzer is designed for monitoring the nickel-plating bath at all times, available to ensure that when the nickel concentration and/or pH fall below their pre-set values, replenishment via metering pumps commences to maintain optimum pH and concentrations of nickel within the dosing limit.
Measuring Principle
When the nickel ion electrolyte solution passes through the measurement cell, the change of the absorption light can be measured under different concentrations of chemical nickel penetrated and absorbed by the LED light waves. By measuring the high point and low point of absoption light, and then measured the result of nickel ion concentration.
